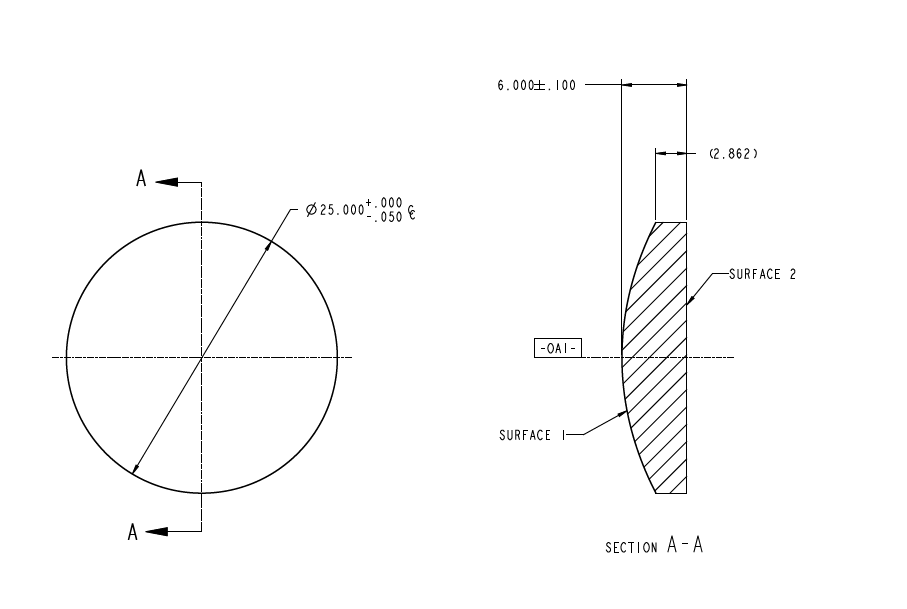

非球面透镜型号: Newlens, EFL: 50.0mm, NA: 0.23, WD: 46.0mm, CA: 23.0/22.0mm, OD: 25mm
标准膜系
| 透镜系列 | 镀膜 | λ范围(nm) | 反射率 | 膜系图 |
| 352xxx, 353xxx, 354xxx, 355xxx | MLBB-A | 350 - 700 | Ravg < 0.50% | |
| 352xxx, 354xxx, 355xxx | MLBB-B | 600 - 1050 | Rmax < 1.00% | |
| 352xxx, 354xxx, 355xxx | MLBB-C | 1050 - 1600 | Rmax < 1.00% | |
| 355xxx | MLBB-Q | 1300 - 1700 | Rmax < 0.25% | |
| 357xxx | UVA | 350 - 500 | Rmax < 1.00% | |
低熔点玻璃材料参数
Lens Code | Glass Type | Refractive Index | Abbe Number | CTE | dn/dT | Equivalent Glasses |
352xxx | ECO-550 | 1.603 | 50.02 | 11.62 x 10-6/°C | 2.39 x 10-6/°C | N/A |
353xxx | H-FK61 | 1.495 | 81.20 | 13.8 x 10-6/°C
| -6.6 x 10-6/°C | Hoya-FCD1 & Ohara S-FPL51 |
354xxx | D-ZK3 | 1.586 | 60.71 | 7.6 x 10-6/°C
| 3.2 x 10-6/°C | Hoya M-BACD5N & Ohara L-BAL35 |
355xxx | D-ZLaF52La | 1.806 | 40.79 | 6.9 x 10-6/°C | 6.5 x 10-6/°C | Ohara L-LAH53, Hoya M-NBFD130, Sumita K-VC89 |
357xxx | D-LaK6 | 1.690 | 52.65 | 6.9 x 10-6/°C | 6.5 x 10-6/°C
| Hoya M-LAC130 & Ohara L-LAL13 |
透镜图纸(联系金年会|JINNIANHUI)
透镜ZEMAX文件（联系金年会|JINNIANHUI）
玻璃材料Datasheet:
